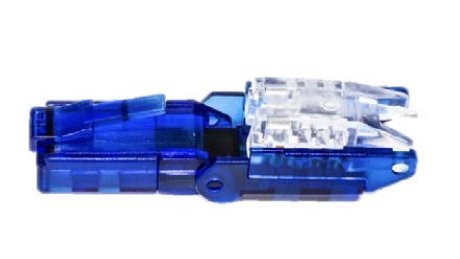

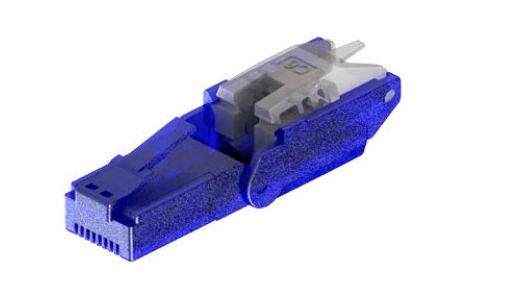

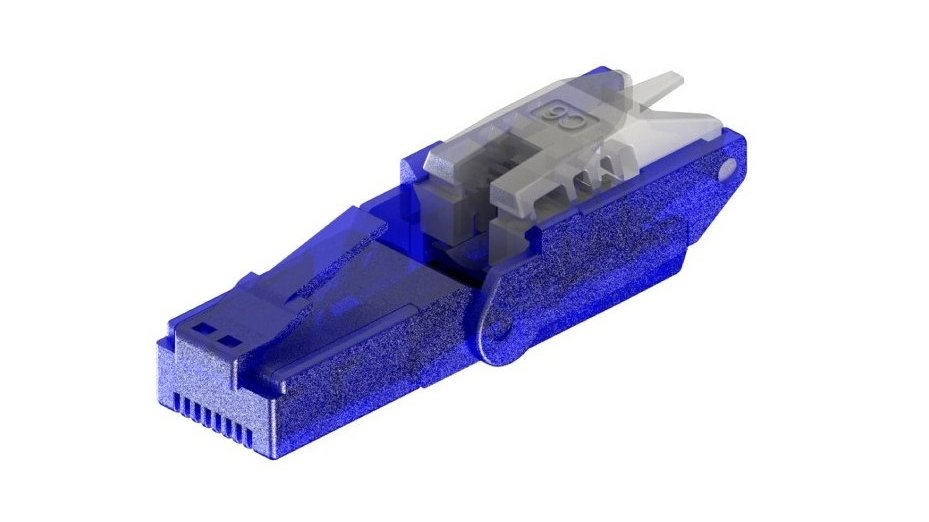

P8-100 RJ45 Rotatable Cat.6 UTP Field Termination plug
Features :

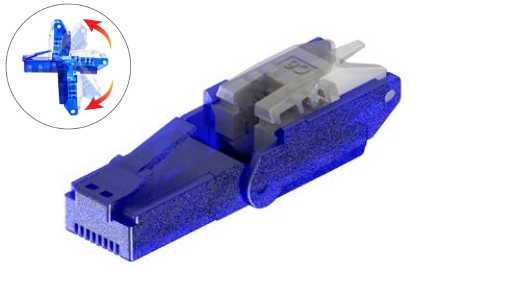

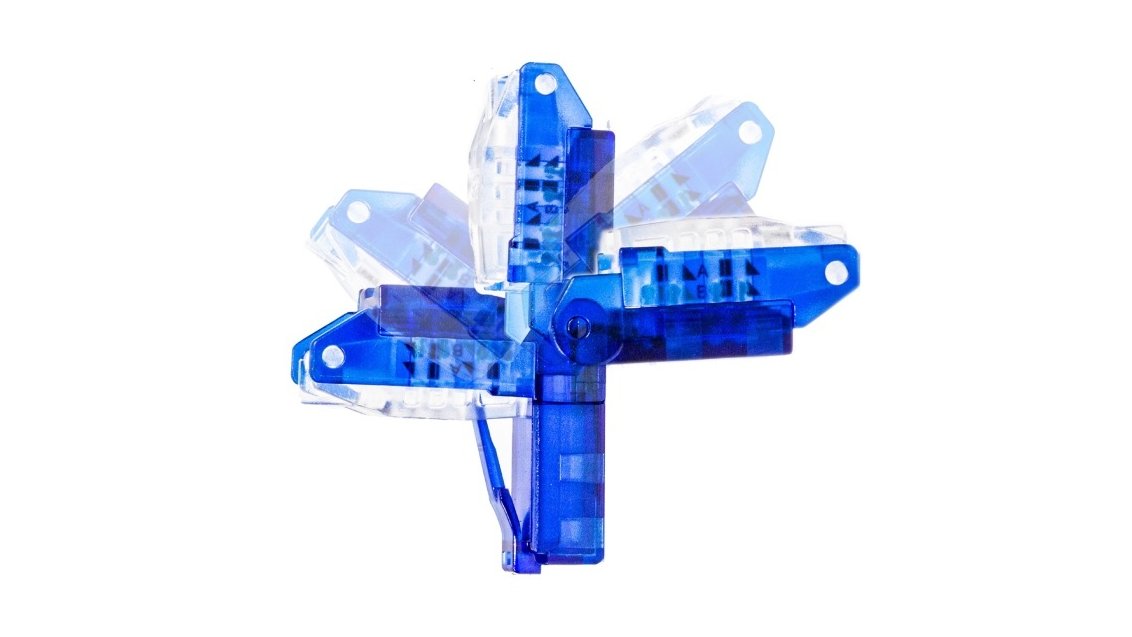

• Rotatable design to fit in the small space
• PCB compensation design, up to 90 meters Modular Plug Terminated Link(MPTL) applications
• Easy field termination, T568A & B wiring
• Power over HDBaseT™(PoH) applications up to 30 W
• UL verified
• Dimension: L46.9 x W14.0 x H12.1mm
• Quick in-field installation by the tool-free termination design,
suitable for 24-26AWG solid and stranded conductors, cable
OD from 4.4 to 6.8mm.
| Part No. |
P8-100
RJ45 Rotatable Cat.6 UTP Field Termination plug |
| Maximum Cable O.D. Size Supported | 4.4 ~ 6.8 mm |
| Maximum conductor W/insulation O.D. Size | 24 ~ 26 Awg |
| Conductor type | Solid | Stranded |
| Packaging Features | 1 piece / bag , 50 pieces / white box |
| Operation Temperature | 10℃ to 60 ℃ |
| Storage temperature | -40℃ to 70℃ |
| Compliance | Meet IEC 60603-7 , ISO/IEC 11801, ANSI/TIA 568. 2-D , TIA-1096 Chapter 4 and 5 , ROHS/REACH compliant |
| Related Assistant Tool | PM-ETC-D |
