Cat.5e
NOTE :- S : Short body type
- M : Shielded plug with cable clip type
- D : Dec Type (Offset Tab)
Description:
- F : Flat cable entry
- K : Key Type
- R : Round cable entry
- L : Long body
- 0.6/0.7/0.8/0.9…etc, means “Diameter of inside wire chase hole.
- Two piece : Plug with Insert bar (liner)
- Three piece : Plug with divider (sled) and insert bar.
-

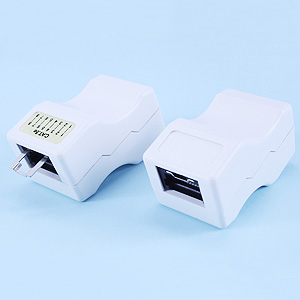

IC-PM05L-01 C5e Inline Coupler
Mechanical Specifications:
- - RoHS
- - Meets C5e EIA/TIA 568B Standard
- Jack Insertion Cycle: Over 2000 Cycles
- Operation Temperature: -40 ~ +70 Degree Celsius
- - Body: Fireproof ABS UL-94V0
- - PCB: FR-4 / UL-94V0
- - Jack: 8P8C 50 micro inches gold plated
- - Lock bar: Metal (SPCC)
- - Spring: SUS
- - Insulation Resistance: 500M ohms (min.)
- - Contact Resistance: 20m ohms (max.)
- - Current Rating: 1.5 Amps.
- - DC Resistance: 0.1 ohms (max.)
- - Withstanding Volatage: 1000 VAC RMS @ 60Hz/1min.
- 10 Colors : Black, Ivory, Red, Green, White, Blue, Orange, Yellow, Gray, Plated
- Materials :
- Electrical Specifications:
-

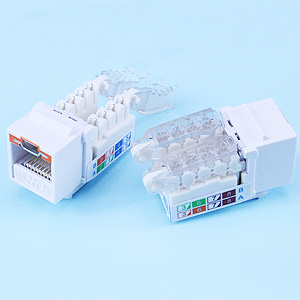

KJ-PM05L-01 C5e Keystone Jack UTP - Toolless type
Mechanical Specifications:
- RoHS
- Meets C5e EIA/TIA 568B Standard
- IDC Punch Down Cycle: over 250 Cycles (min.)
- Jack Insertion Cycle: Over 2000 Cycles (min.)
- Operation Temperature: -40℃ ~ +70℃
Materials :
- Body: Fireproof ABS UL-94V0
- PCB: FR-4 / UL-94V0
- Jack: 8P8C 50 micro inches gold plated
- Lock bar: Metal (SPCC)
– IDC description: For 22-26 AWG
For 110 or Krone punch-down Tool
Tool-less (When use IDC cap directly)
Electrical Specifications:
- Insulation Resistance: 500M ohms (min.)
- Contact Resistance: 20m ohms (max.)
- Current Rating: 1.5 Amps.
- DC Resistance: 0.1 ohms (max.)
- Withstanding Voltage: 1000 VAC RMS @ 60Hz/1min.
- 10 Colors : Black, Ivory, Red, Green, White, Blue, Orange, Yellow, Gray, Metal, Tin
-

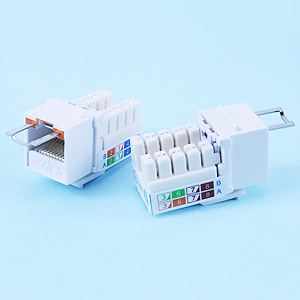

KJ-PM05L-02 C5e Keystone Jack UTP
Mechanical Specifications:
- RoHS
- Meets C5e EIA/TIA 568B Standard
- IDC Punch Down Cycle: over 250 Cycles (min.)
- Jack Insertion Cycle: Over 2000 Cycles (min.)
- Operation Temperature: -40℃ ~ +70 ℃
Materials :
- Body: Fireproof ABS UL-94V0
- PCB: FR-4 / UL-94V0
- Jack: 8P8C 50 micro inches gold plated
- Lock bar: Metal (SPCC)
– IDC description: For 22-26 AWG
For 110 punch-down Tool
Electrical Specifications:
- Insulation Resistance: 500M ohms (min.)
- Contact Resistance: 20m ohms (max.)
- Current Rating: 1.5 Amps.
- DC Resistance: 0.1 ohms (max.)
- Withstanding Voltage: 1000 VAC RMS @ 60Hz/1min.
