Cat.6
NOTE :- S : Short body type
- M : Shielded plug with cable clip type
- D : Dec Type (Offset Tab)
Description:
- F : Flat cable entry
- K : Key Type
- R : Round cable entry
- L : Long body
- 0.6/0.7/0.8/0.9…etc, means “Diameter of inside wire chase hole.
- Two piece : Plug with Insert bar (liner)
- Three piece : Plug with divider (sled) and insert bar.
-

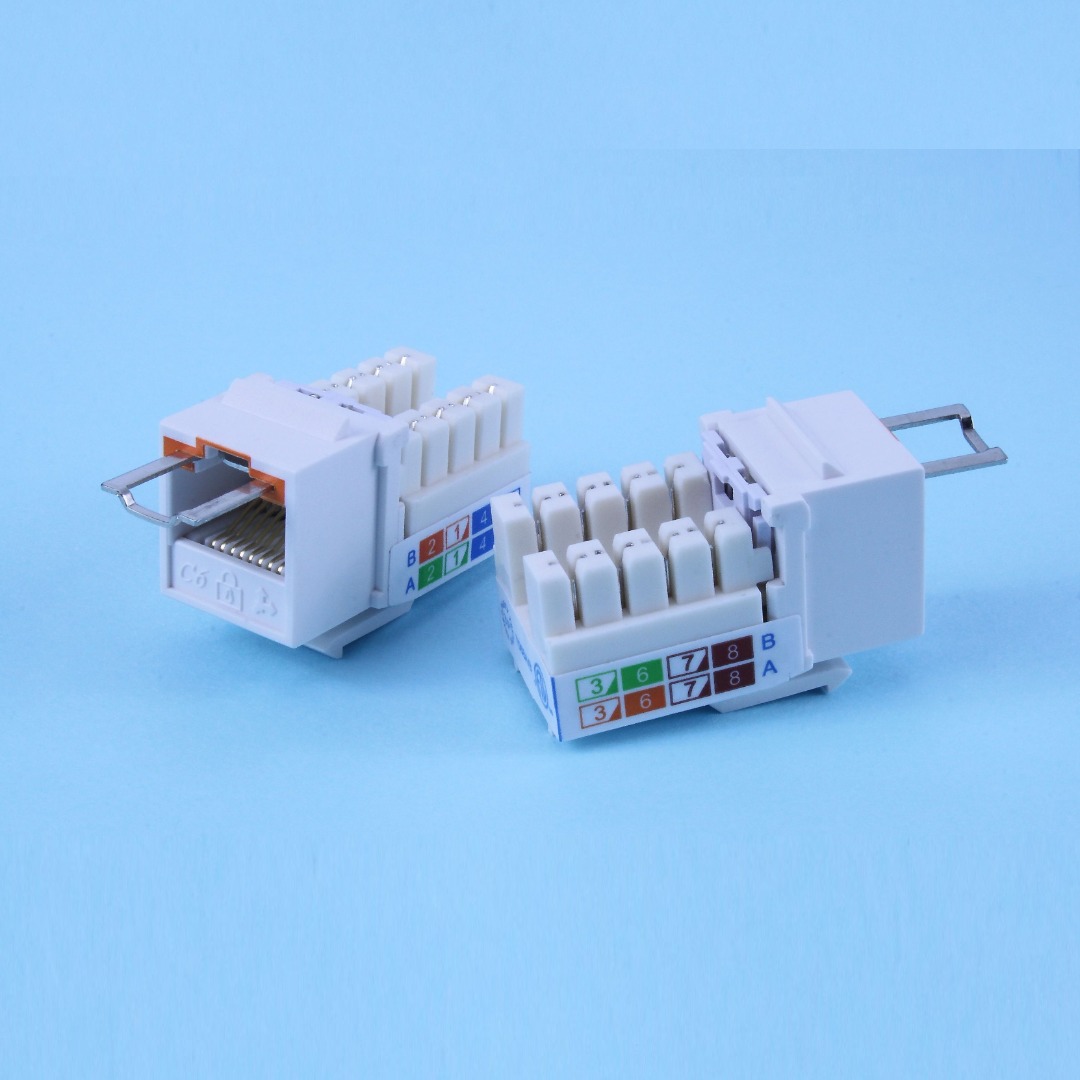

KJ-PM06L-03 C6 Keystone Jack UTP
C6 Keystone Jack, Vertical Narrow-110 (
Slim Width=16.6mm ),
Locking Function, UTP, IDC : 110, w/o CapMechanical Specifications:
- ROHS
- Meets C6 EIA/TIA 568B Standard
- Jack Insertion Cycle: Over 2000 Cycles
- Operation Temperature: -40 ~ +70 Degree CelsiusMaterials :
- Body: Fireproof ABS UL-94V0
- PCB: FR-4 / UL-94V0
- Jack: 8P8C 50 micro inches gold plated
– IDC Body: Fireproof of ABS UL-94V0
– IDC Pin: Phosphor Bronze & Tinned
- Lock bar: Metal (SPCC)
Electrical Specifications:
- Insulation Resistance: 500M ohms (min.)
- Contact Resistance: 20m ohms (max.)
- Current Rating: 1.5 Amps.
- DC Resistance: 0.1 ohms (max.)
- Withstanding Voltage: 1000 VAC RMS @ 60Hz/1min.
IDC Description:
For 22-26 Awg
For 110 punch-down Tool
-

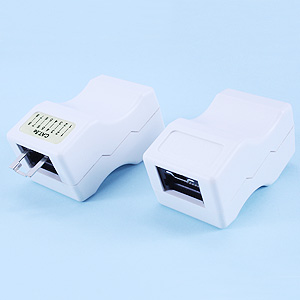

IC-PM06L-01 C6 Inline Coupler UTP
C6 Inline copuler, UTP, Jack to Jack typeHorizontal Narrow ( Slim Width = 16.3mm)
Color Available : Black, Ivory, Red, Green, White, Blue, Orange, Yellow, Gray, PlatedMechanical Specifications:
- RoHS- Meets C6 EIA/TIA 568B Standard- Jack Insertion Cycle: Over 2000 Cycle- Operation Temperature: -40 ~ +70 Degree CelsiusMaterials :
- Body: Fireproof ABS UL-94V0- PCB: FR-4 / UL-94V0- Jack: 8P8C 50 micro inches gold plated- Lock bar: Metal (SPCC)- Spring: SUS- Spring Base: fire Proof UL-94V2-PCElectrical Specifications:
- Insulation Resistance: 500M ohms (min.)- Contact Resistance: 20m ohms (max.)
- Current Rating: 1.5 Amps.- DC Resistance: 0.1 ohms (max.)- Withstanding Voltage: 1000 VAC RMS @ 60Hz/1min. -

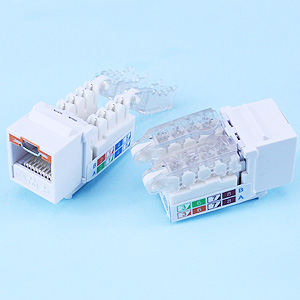

KJ-PM06L-01 C6 Keystone Jack UTP - Toolless type
Mechanical Specifications :
- RoHS
- Meets C6 EIA/TIA 568B Standard
- Jack Insertion Cycle: Over 2000 Cycles
- Operation Temperature: -40 ~ +70 Degree Celsius
Materials :
- Body: Fireproof ABS UL-94V0
- PCB: FR-4 / UL-94V0
- Jack: 8P8C 50 micro inches gold plated
- IDC cap: Fireproof of PC
- IDC Body: Fireproof of ABS UL-94V0
- IDC Pin: Phosphor Bronze & Tinned
- Lock bar: Metal (SPCC)
Electrical Specifications :
- Insulation Resistance: 500M ohms (min.)
- Contact Resistance: 20m ohms (max.)
- Current Rating: 1.5 Amps.
- DC Resistance: 0.1 ohms (max.)
- Withstanding Voltage: 1000 VAC RMS @ 60Hz/1min.
IDC Description :
For 22-26 Awg
For 110 or Krone punch-down Tool
Toolless (when using IDC cap directly )
10 Colors : Black, Ivory, Red, Green, White, Blue, Orange, Yellow, Gray, Metal, Tin
-

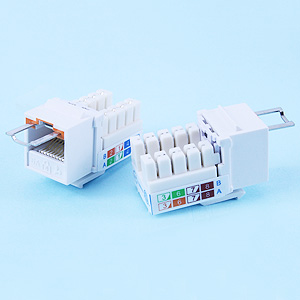

KJ-PM06L-02 C6 Keystone Jack UTP
Mechanical Specifications:
- ROHS
- Meets C6 EIA/TIA 568B Standard
- Jack Insertion Cycle: Over 2000 Cycles
- Operation Temperature: -40 ~ +70 Degree CelsiusMaterials :
- Body: Fireproof ABS UL-94V0
- PCB: FR-4 / UL-94V0
- Jack: 8P8C 50 micro inches gold plated
– IDC Body: Fireproof of ABS UL-94V0
– IDC Pin: Phosphor Bronze & Tinned
- Lock bar: Metal (SPCC)
Electrical Specifications:
- Insulation Resistance: 500M ohms (min.)
- Contact Resistance: 20m ohms (max.)
- Current Rating: 1.5 Amps.
- DC Resistance: 0.1 ohms (max.)
- Withstanding Voltage: 1000 VAC RMS @ 60Hz/1min.
IDC Description:
For 22-26 Awg
For 110 punch-down Tool
-

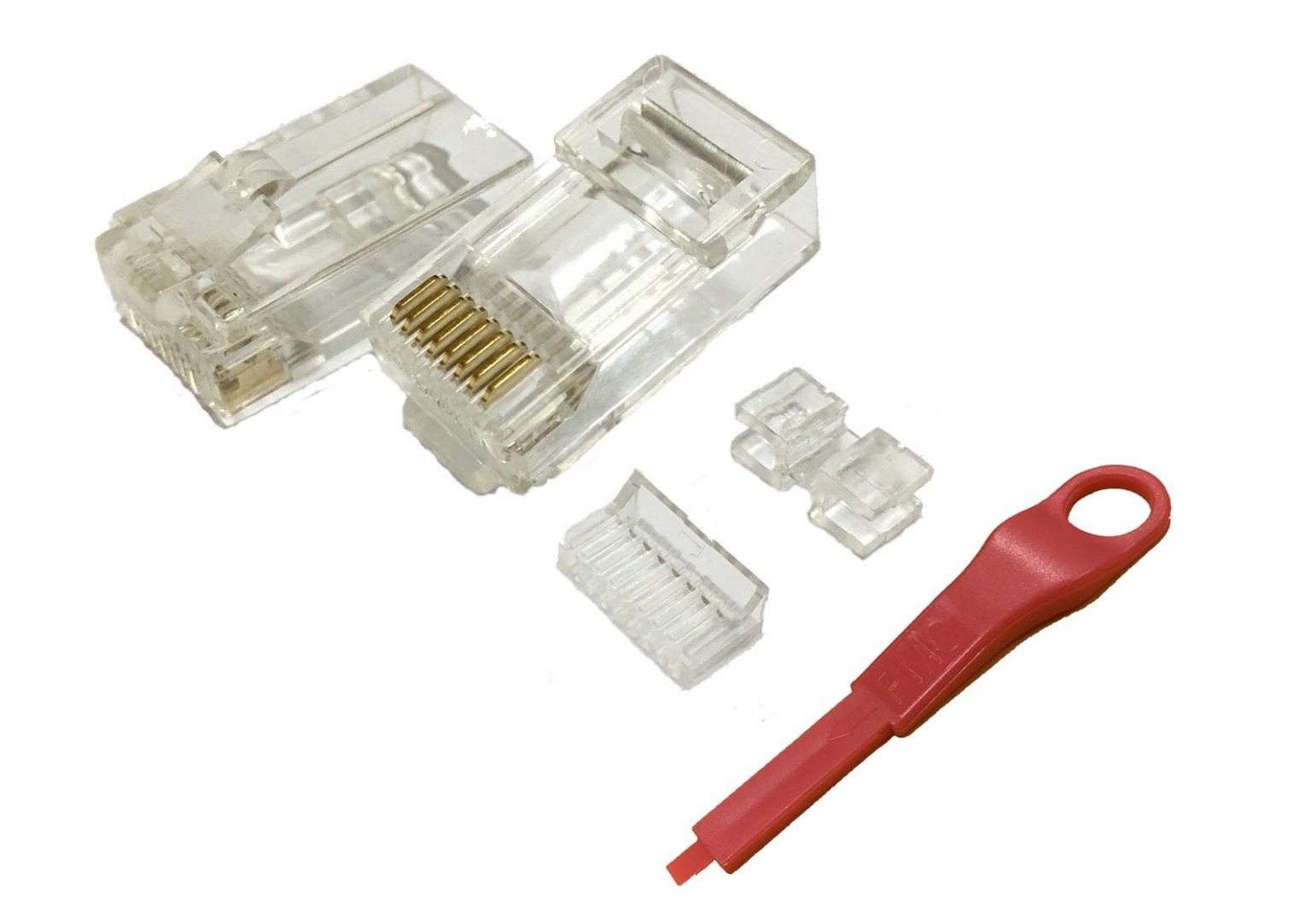

P8-039-9 +P8-I040 Extraction prevented Plug. ( PATENTED) To prevent someone extract your plug uncarefully.
