• Features

    • Easy and quick to terminate with cables
    • High performance
    • PoE+ compliant
    • Accomadated with larger wires
    • Repeatable installation

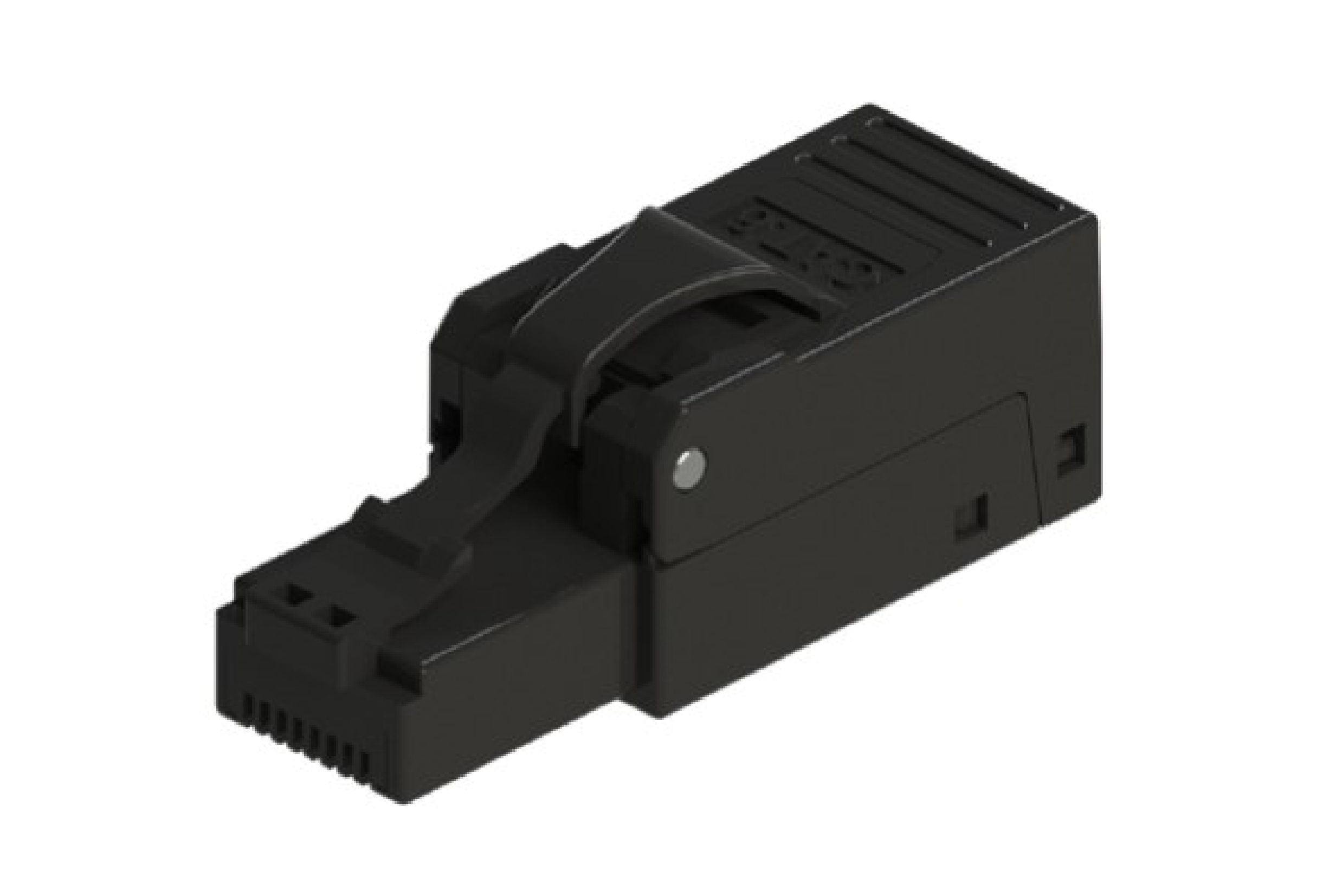

  • P8-099 RJ45 Cat.6 UTP Field Termination plug


    Features :



     Extreme performance by PCB compensation design for Hyper-Scale and Edge Data Center

     Easy field termination, T568A & B wiring

     Power over HDBaseT™ (PoH) applications up to 100 W

     Design to support Ethernet at rates up to 10 Gbps over distances up to 55 meters

     Up to 90 meters Modular Plug Terminated Link (MPTL) applications

     Design to support CAT. 6 patch cord component-rated

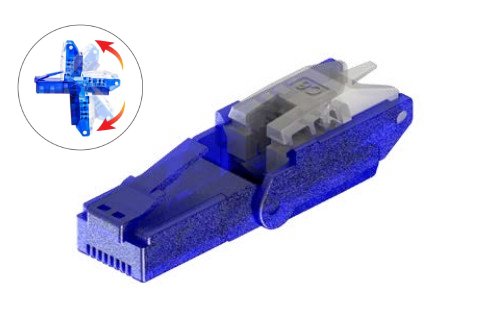

  • P8-100 RJ45 Rotatable Cat.6 UTP Field Termination plug


    Features :

    • Rotatable design to fit in the small space

    • PCB compensation design, up to 90 meters Modular Plug Terminated Link(MPTL) applications

    • Easy field termination, T568A & B wiring

    • Power over HDBaseT™(PoH) applications up to 30 W

    • UL verified

    • Dimension: L46.9 x W14.0 x H12.1mm

    • Quick in-field installation by the tool-free termination design,
       suitable for 24-26AWG solid and stranded conductors, cable
       OD from 4.4 to 6.8mm.
