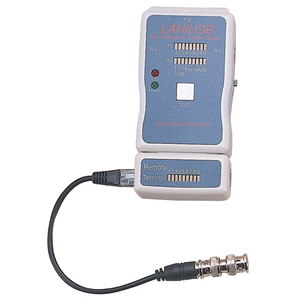

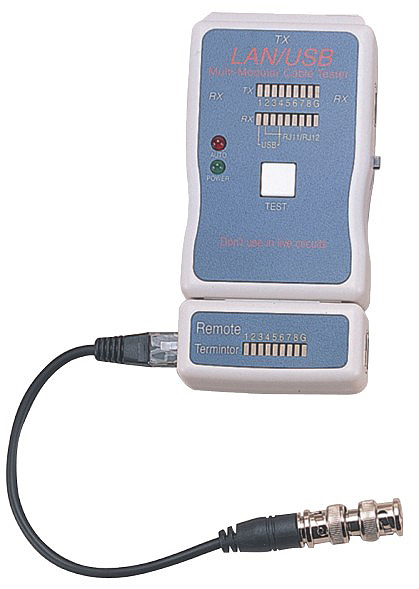

PM-168 Lan/USB Multi-Modular Cable Tester

Introduction :

The LAN/USB Cable Tester is designed to easily read the correct cable pin out configuration.

The cables include the USB(A/A), USB(A/B), BNC 10Base-T, 100Base-TX, 1000Base-TX, Token Ring, AT&T 258A, Coaxial, EIA/TIA 568A/568B, and RJ11/RJ12 modular cables.

You can connect cable if you want to test BNC, Coaxial, RCA modular cables, If you want to test cable installed far away, either on patch panel or wall plate, use the Remote terminator. The LAN/USB Cable Tester tests RJ11/RJ12 cable, please use

the appropriate adaptors and follow the procedure below to use it very easily and correctly.
