• Features :

     Tool Free

     Performance guarantee

     Easy and quick installation, Reliable and Comfortable.

     Fully Shielded, Screw-fit Boot type





    Performance :

     Cat. 6A Patch Cord Component Level



    Recommended Cable Specification :

    Recommend Cable size

    Solid & Stranded wire

    Cable ( O.D.)

    C6A (P8-079)

    23-26AWG

    6.0 ~ 7.5mm


    Drawing Guide

Part No. P8-079

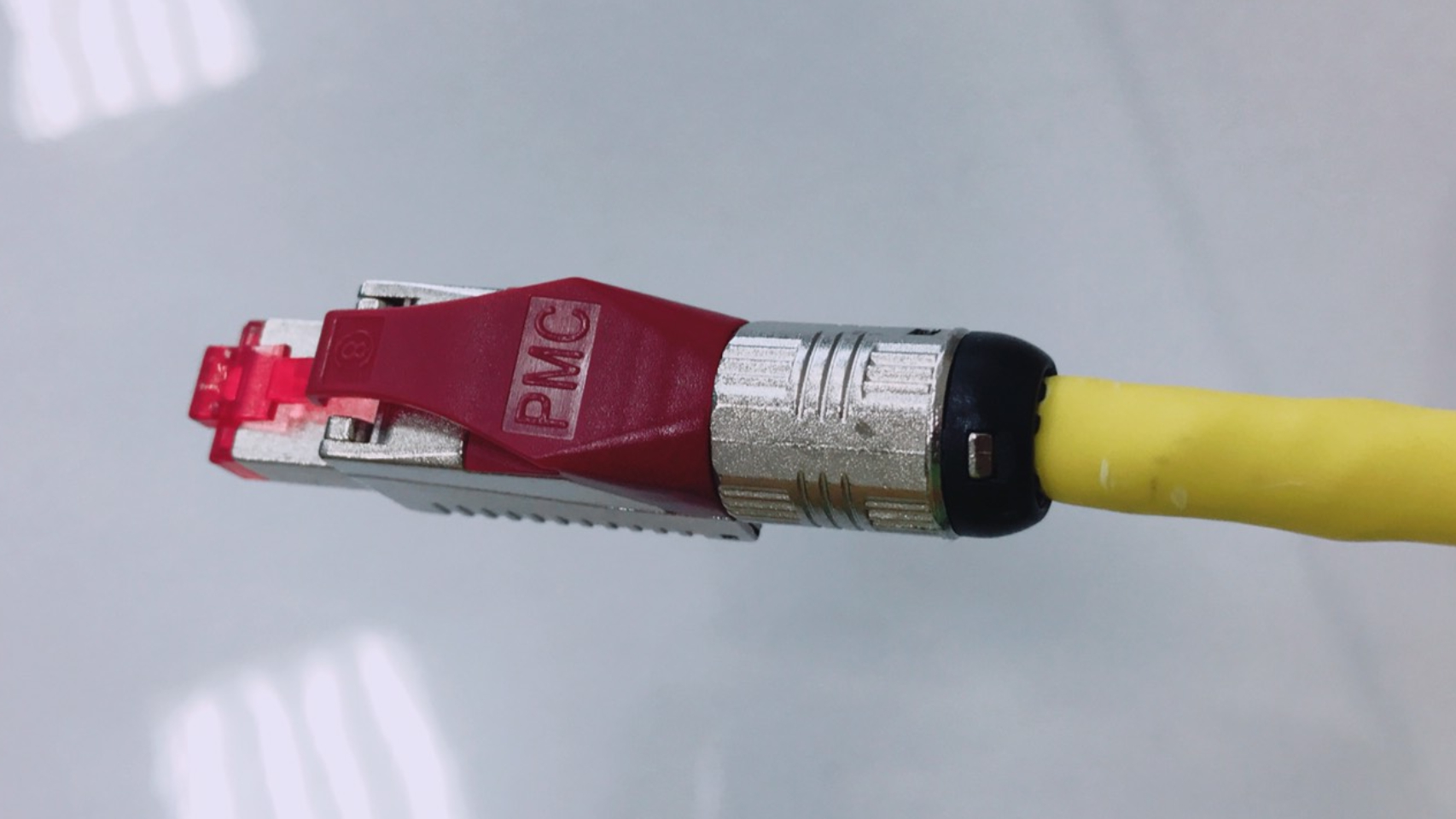

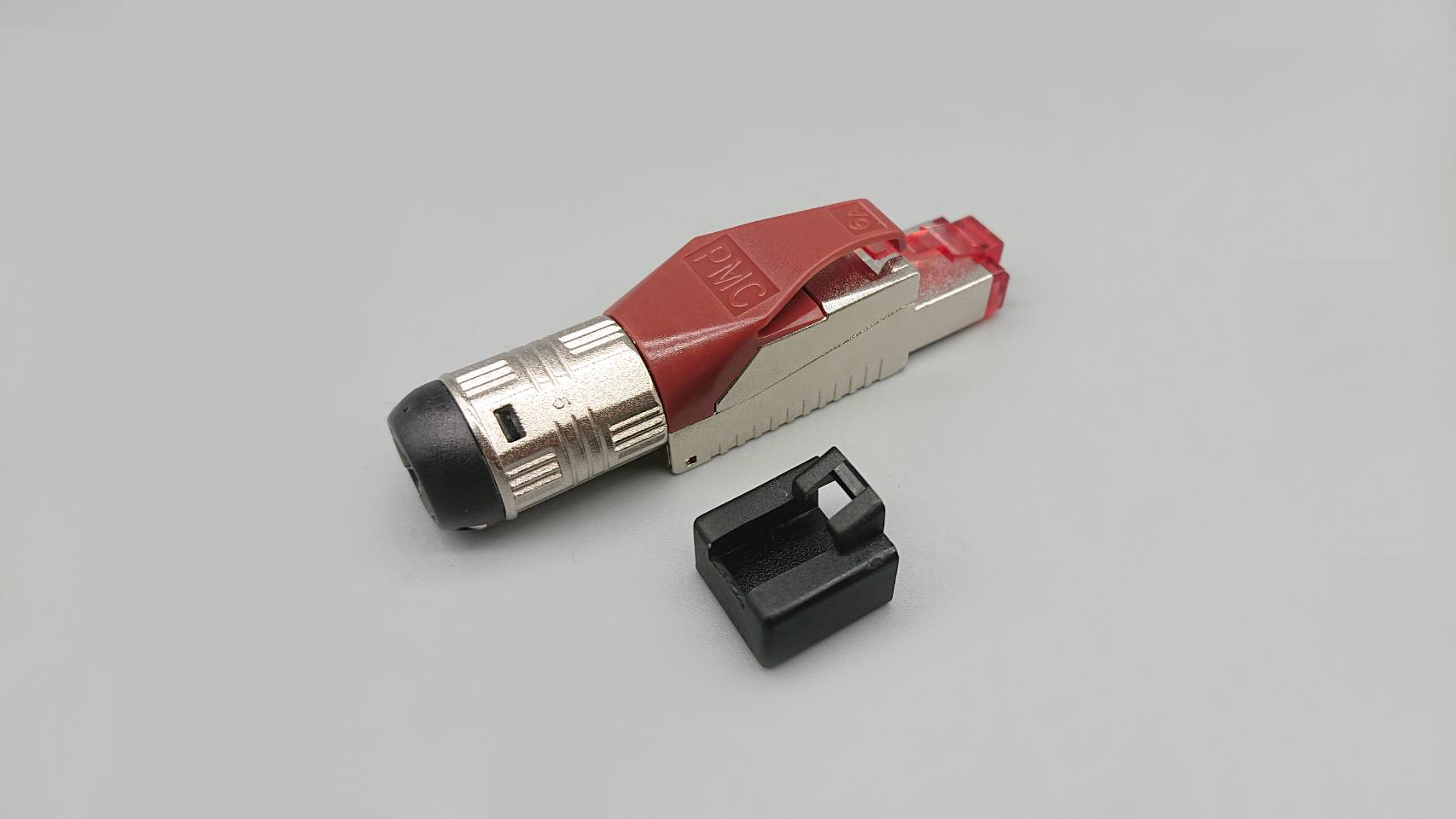

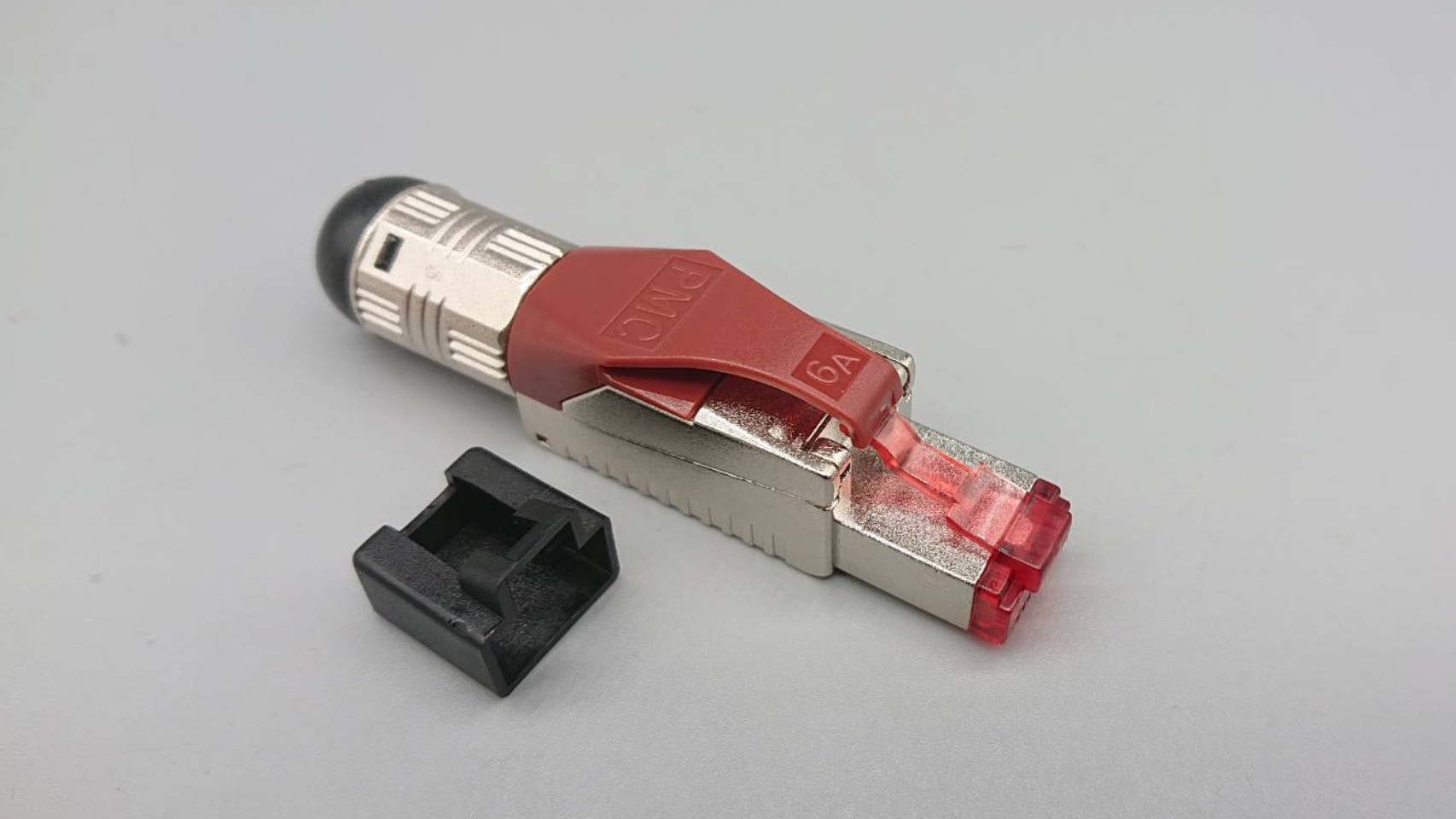

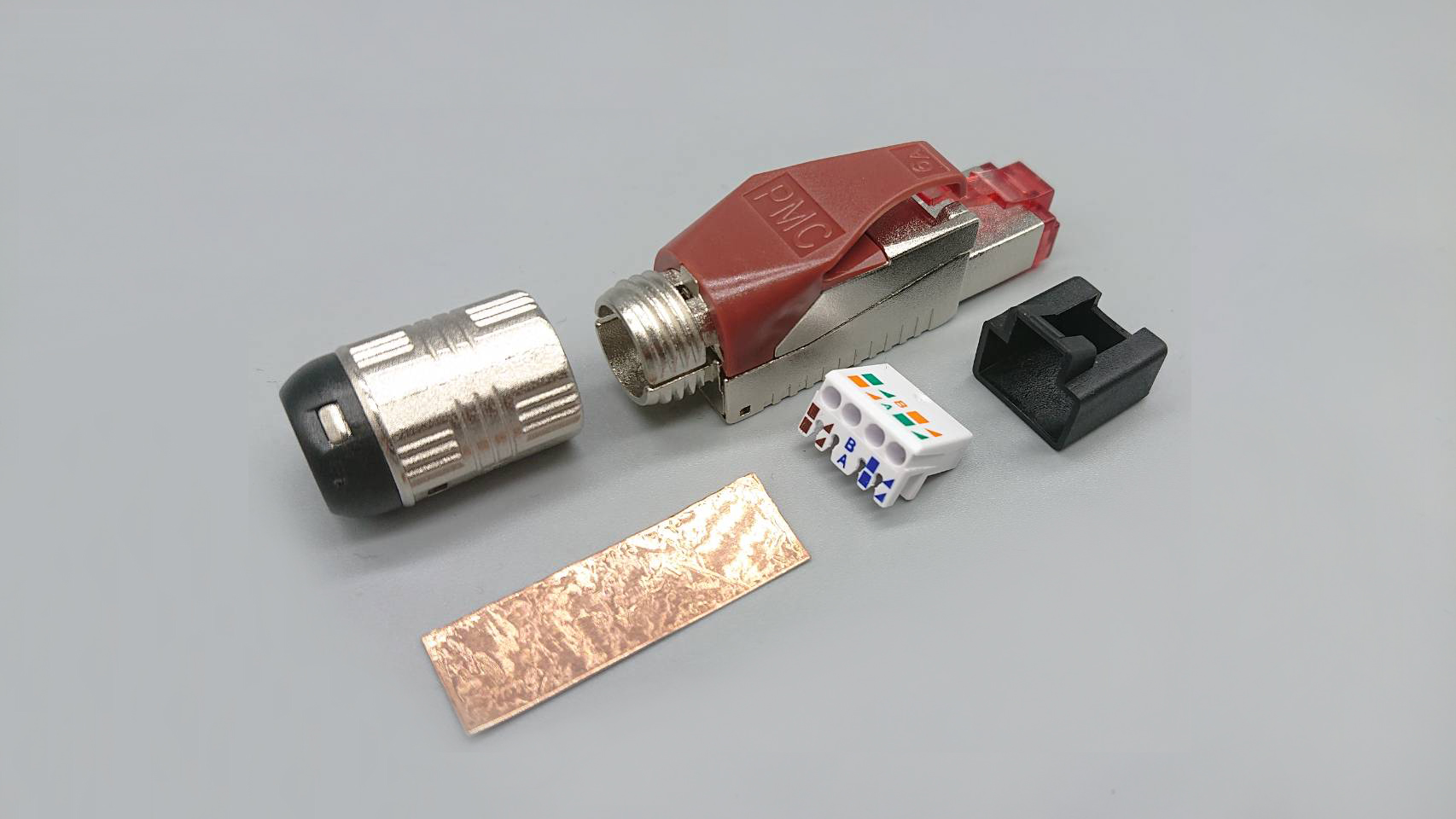

RJ45 Cat.6A Full Shielded Field Termination plug -Screw-fit boot type
Maximum Cable O.D. Size Supported 6.0~7.5mm
Maximum conductor W/insulation O.D. Size 23 ~ 26 Awg
Conductor type Solid | Stranded
Packaging Features 1 piece / bag , 50 pieces / white box
Operation Temperature -10℃ to 60 ℃
Storage temperature -40℃ to 70℃
Compliance Meet IEC 60603-7-5 , ISO/IEC 11801, ANSI/TIA 568 C.2 , TIA-1096 Chapter 4 and 5 , ROHS compliant
