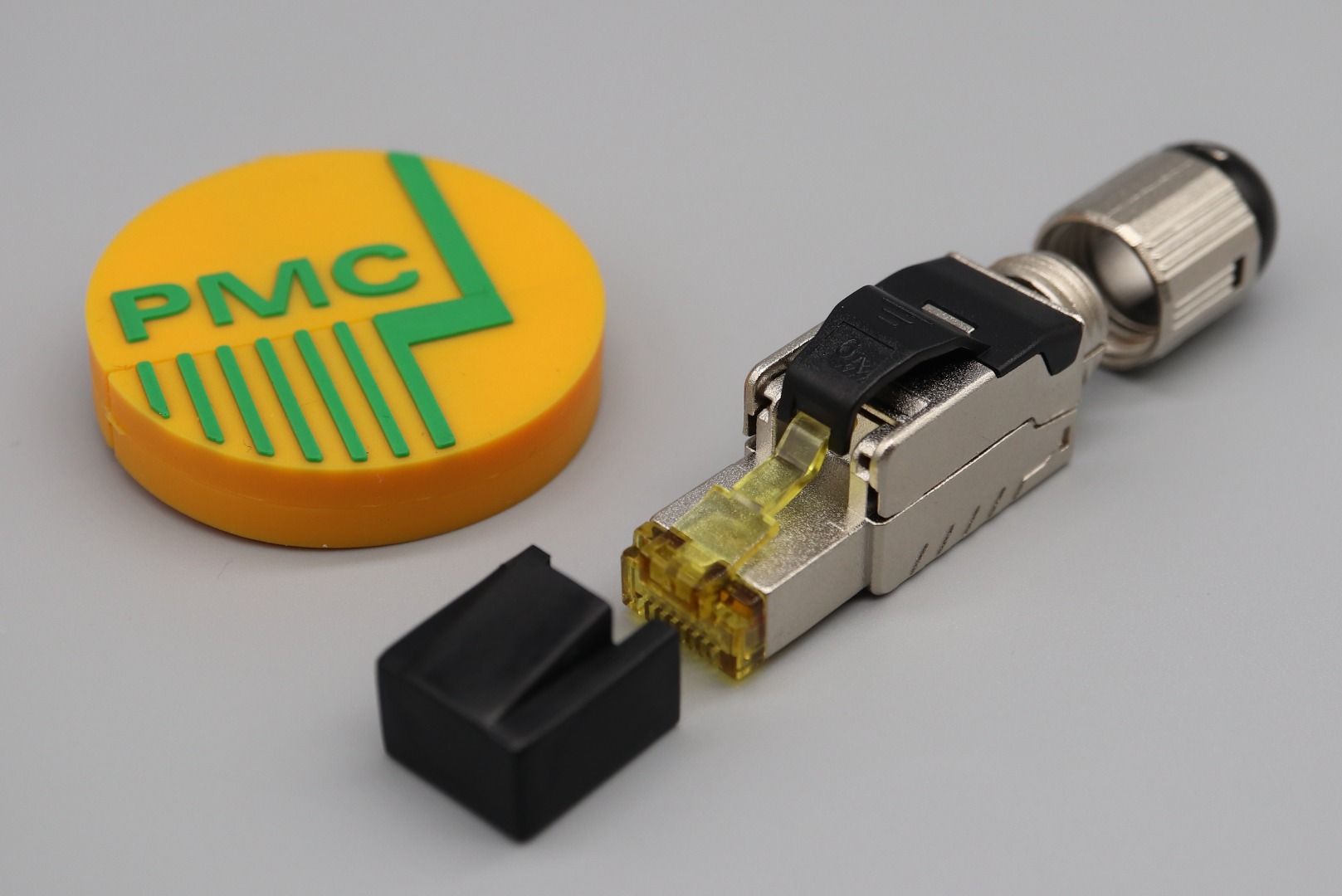

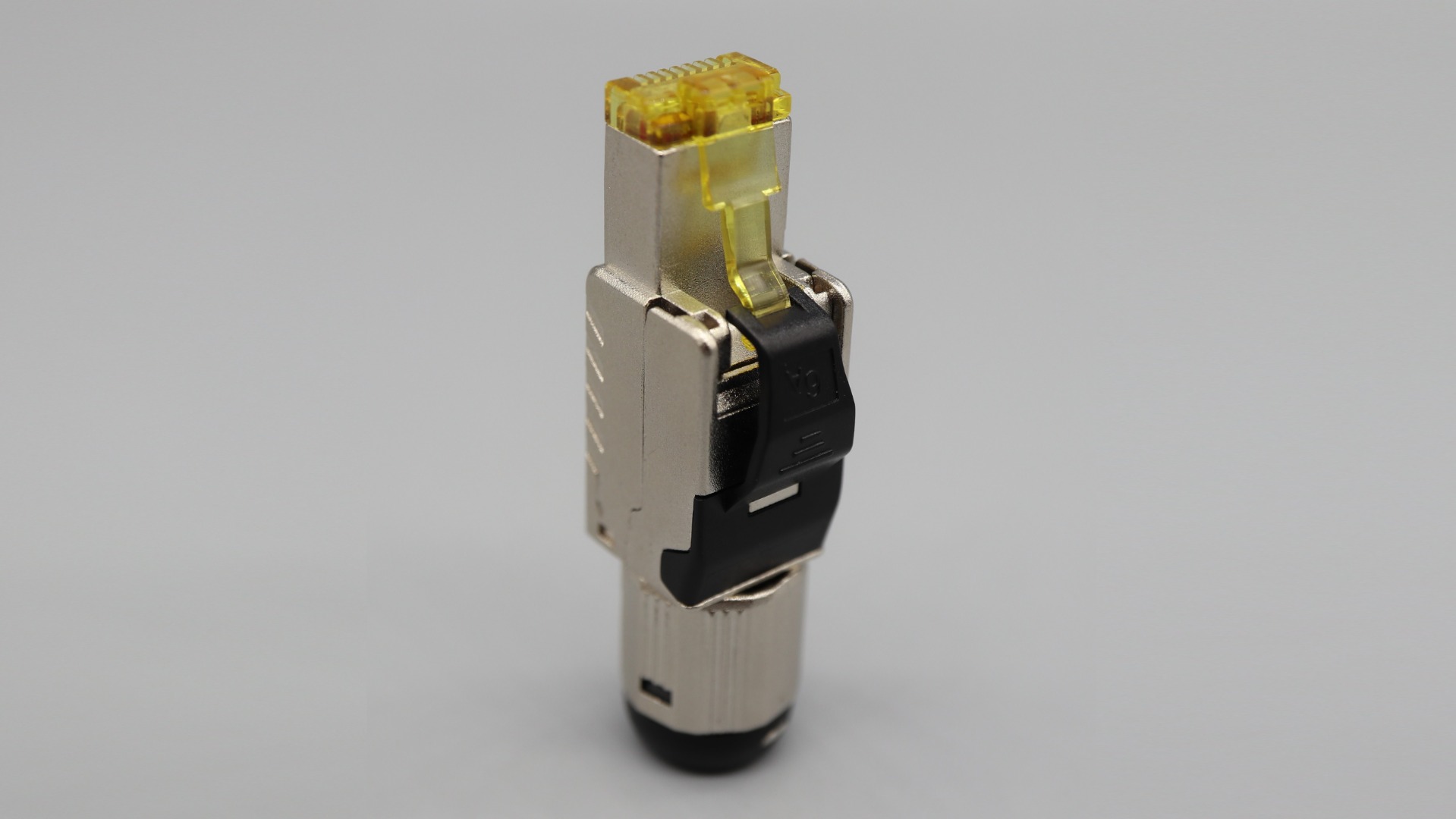

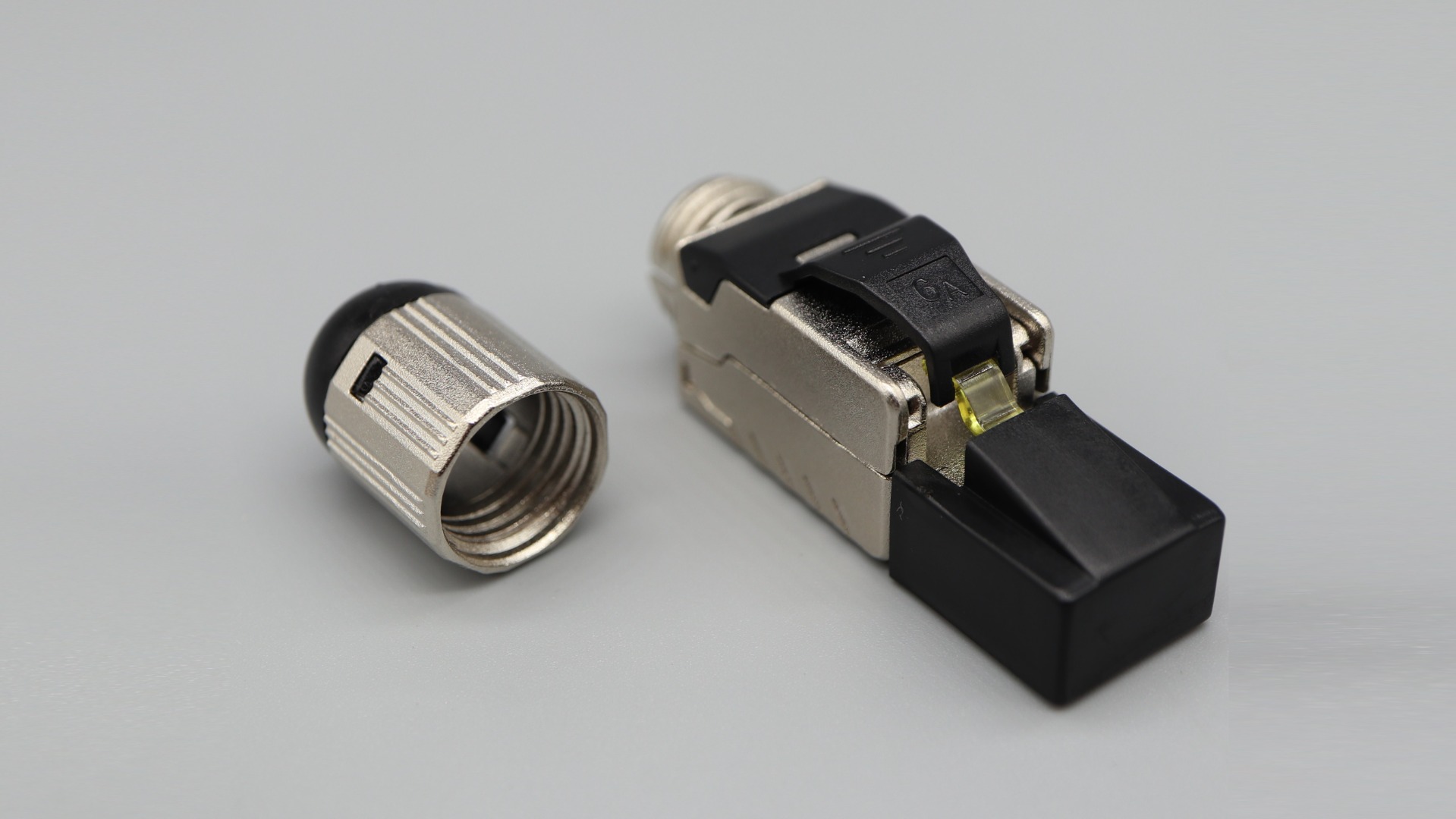

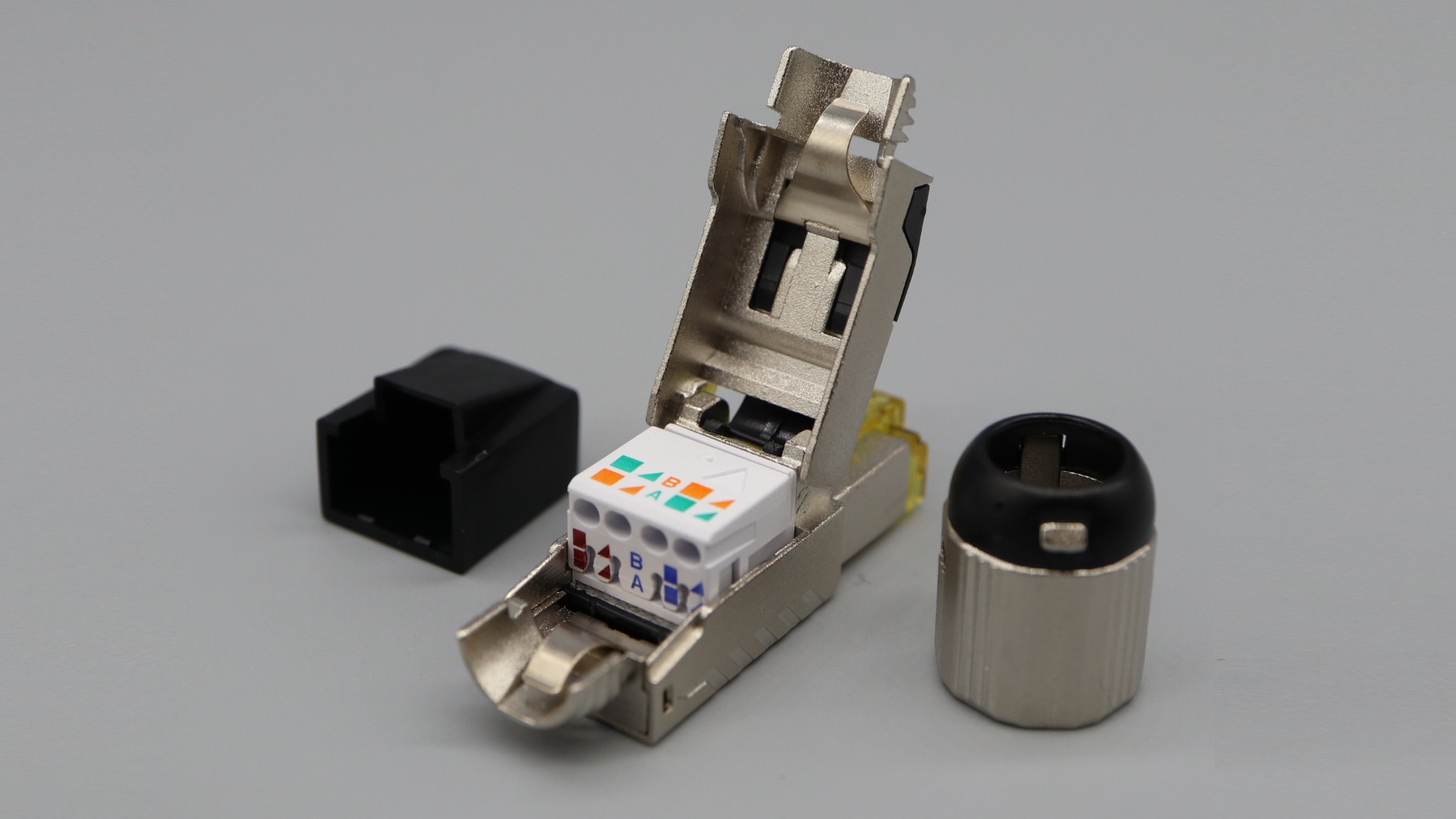

• P8-079-5 , P8-079-6 RJ45 Cat.6A Full Shielded Field Termination plug -Screw-fit boot type
    P8-079-5 , P8-079-6 RJ45 Cat.6A Full Shielded Field Termination plug -Screw-fit boot type P8-079-5 , P8-079-6 RJ45 Cat.6A Full Shielded Field Termination plug -Screw-fit boot type P8-079-5 , P8-079-6 RJ45 Cat.6A Full Shielded Field Termination plug -Screw-fit boot type

    P8-079-5 , P8-079-6 RJ45 Cat.6A Full Shielded Field Termination plug -Screw-fit boot type


    Features :

    ▲ Tool Free

    ▲ Performance guarantee

    ▲ Easy and quick installation, Reliable and Comfortable.

    ▲ Fully Shielded, Screw-fit Boot type

    ▲ Short body Type



    Performance :

    ▲ Cat. 6A Patch Cord Component Level



    Recommended Cable Specification :


    Drawing P8-079-5 Drawing P8-079-6 Guide

Part No. P8-079-5 , P8-079-6
RJ45 Cat.6A Full Shielded Field Termination plug -Screw-fit boot type
Maximum Cable O.D. Size Supported

P8-079-5 : 6.0~7.5mm

P8-079-6 : 7.0~8.5mm
Maximum conductor W/insulation O.D. Size

P8-079-5: 23 ~ 26 AWG

P8-079-6: 22 ~ 24 AWG
Conductor type

Solid | Stranded
Packaging Features

1 piece / bag , 50 pieces / white box
Operation Temperature

-10℃ to 60 ℃
Storage temperature

-40℃ to 70℃
Compliance

Meet IEC 60603-7-5 , ISO/IEC 11801, ANSI/TIA 568.2-C , TIA-1096 Chapter 4 and 5 , ROHS/REACH compliant
