• Mechanical Specifications:

    - RoHS

    - Meets C5e EIA/TIA 568B Standard

    - IDC Punch Down Cycle: over 250 Cycles (min.)

    - Jack Insertion Cycle: Over 2000 Cycles (min.)

    - Operation Temperature: -40 ~ +70




    Materials :

     - Body: Fireproof ABS UL-94V0

    - PCB: FR-4 / UL-94V0

    - Jack: 8P8C 50 micro inches gold plated

    - Lock bar: Metal (SPCC)

    – IDC description: For 22-26 AWG

        For 110 or Krone punch-down Tool

        Tool-less (When use IDC cap directly)





    Electrical Specifications:

    - Insulation Resistance: 500M ohms (min.)

    - Contact Resistance: 20m ohms (max.)

    - Current Rating: 1.5 Amps.

    - DC Resistance: 0.1 ohms (max.)

    - Withstanding Voltage: 1000 VAC RMS @ 60Hz/1min.


    • 10 Colors : Black, Ivory, Red, Green, White, Blue, Orange, Yellow, Gray, Metal, Tin

    Drawing

Part No. KJ-PM05L-01

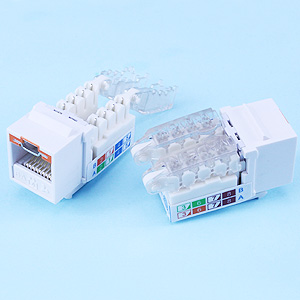

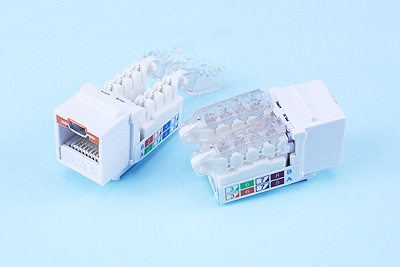

C5e Keystone Jack UTP - Toolless type
Performance Category

Cat. 5e

Description

C5e Keystone Jack UTP

Packaging Features 1pcs/bag, 50 bags/big bag
Operation Temperature - 40℃ ~70 ℃
Compliance Meet C5e EIA/TIA 568B Standard & ROHS compliant
