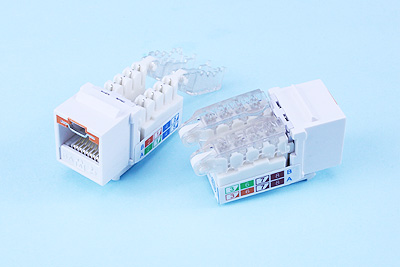

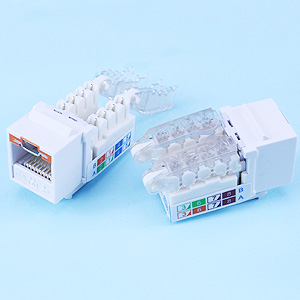

• KJ-PM06L-01 C6 Keystone Jack UTP - Toolless type

    KJ-PM06L-01 C6 Keystone Jack UTP - Toolless type


    Mechanical Specifications :
    - RoHS
    - Meets C6 EIA/TIA 568B Standard
    - IDC Punch Down Cycle : Over 250 Cycles (min.)
    - Jack Insertion Cycle: Over 2000 Cycles (min.)
    - Operation Temperature: -40 ℃ ~ +70 ℃


    Materials :
    - Body: Fireproof ABS UL-94V0
    - PCB: FR-4 / UL-94V0
    - Jack: 8P8C 50 micro inches gold plated
    - IDC cap: Fireproof of PC
    - IDC Body: Fireproof of ABS UL-94V0
    - IDC Pin: Phosphor Bronze & Tinned
    - Lock bar: Metal (SPCC)


    Electrical Specifications :
    - Insulation Resistance: 500M ohms (min.)
    - Contact Resistance: 20m ohms (max.)
    - Current Rating: 1.5 Amps.
    - DC Resistance: 0.1 ohms (max.)
    - Withstanding Voltage: 1000 VAC RMS @ 60Hz/1min.


    IDC Description :
    For 22-26 Awg
    For 110 or Krone punch-down Tool
    Toolless (when using IDC cap directly )


    Color Available : Black, Ivory, Red, Green, White, Blue, Orange, Yellow, Gray, Metal, Tin

    Drawing
