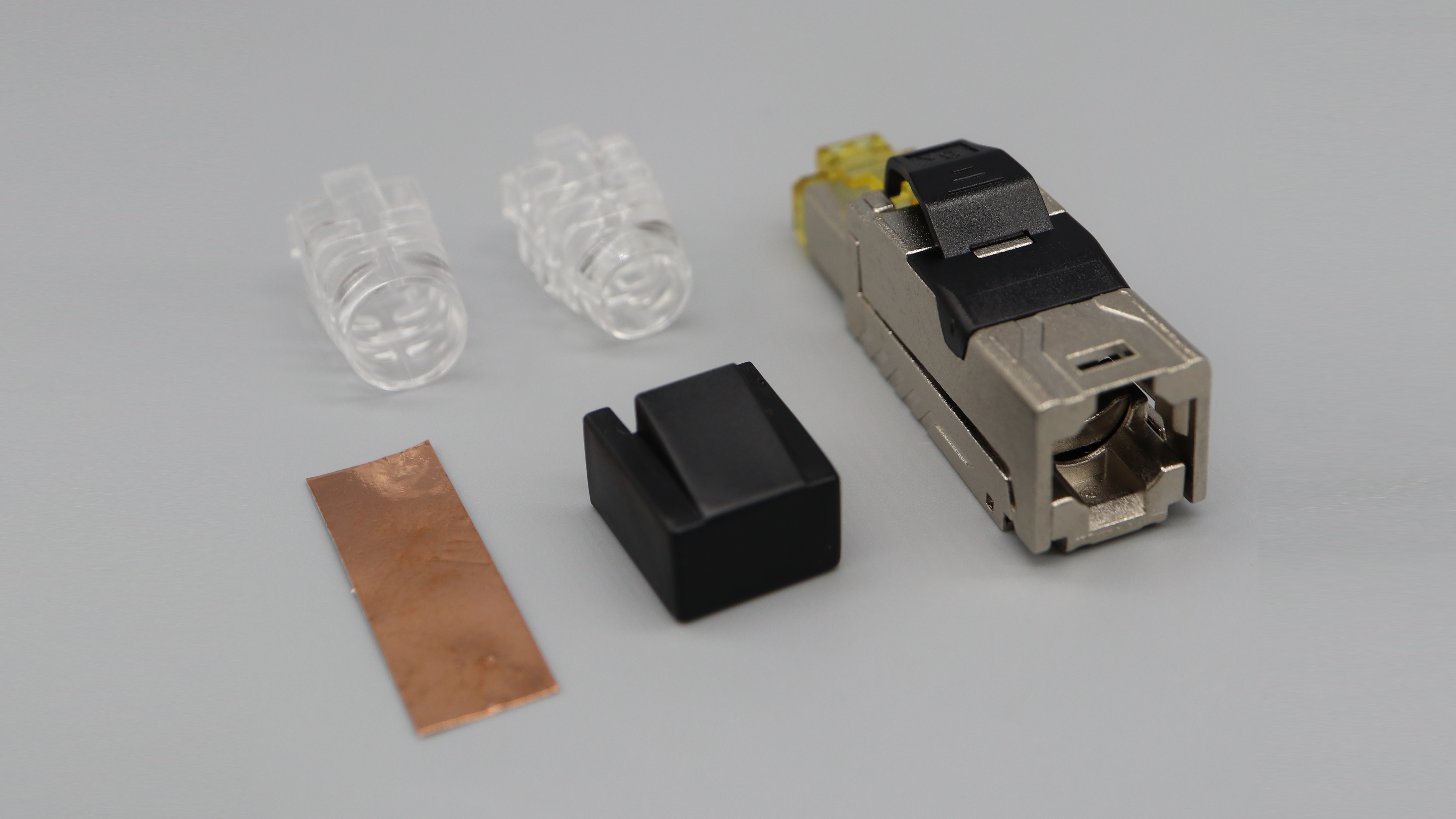

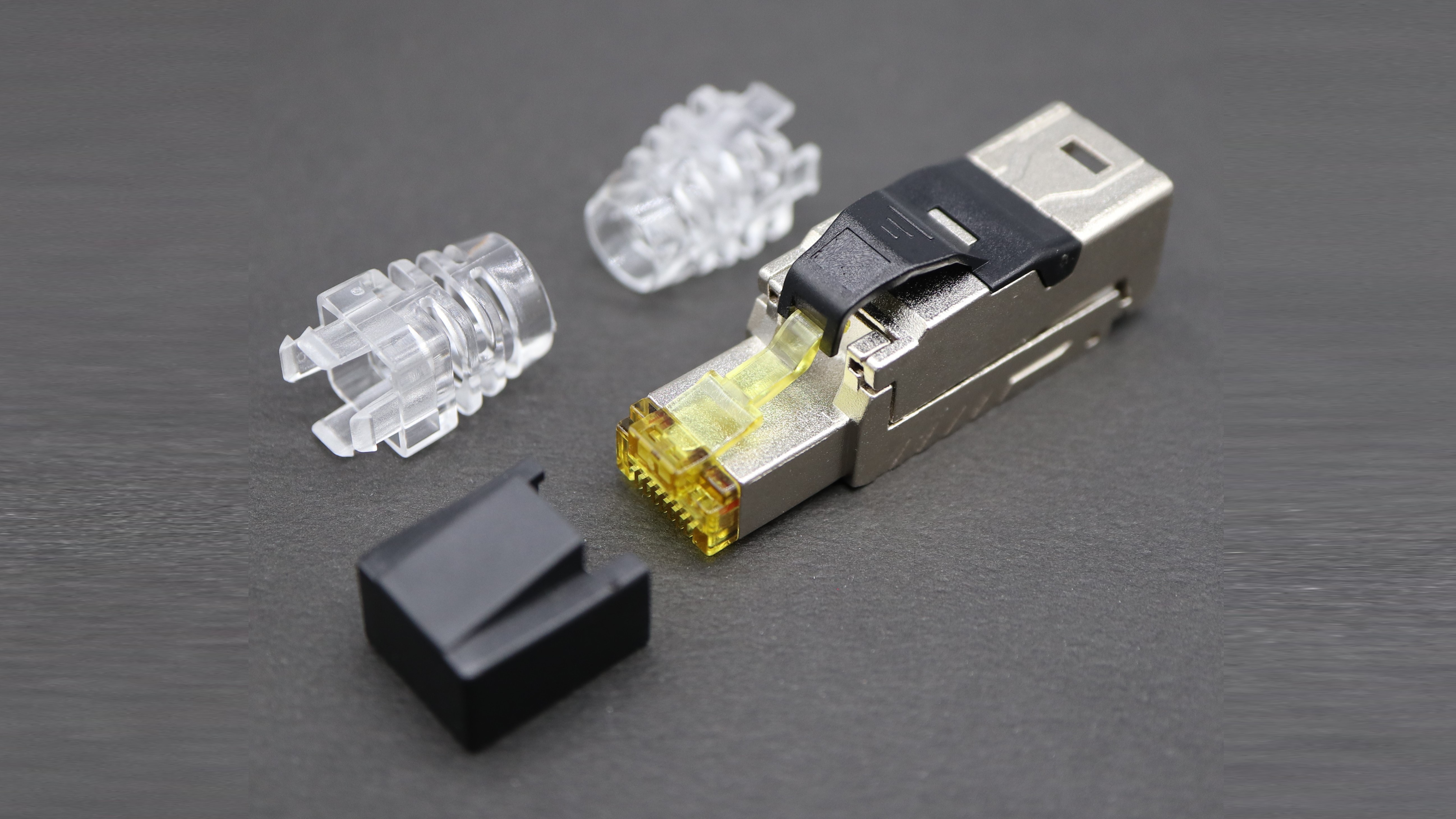

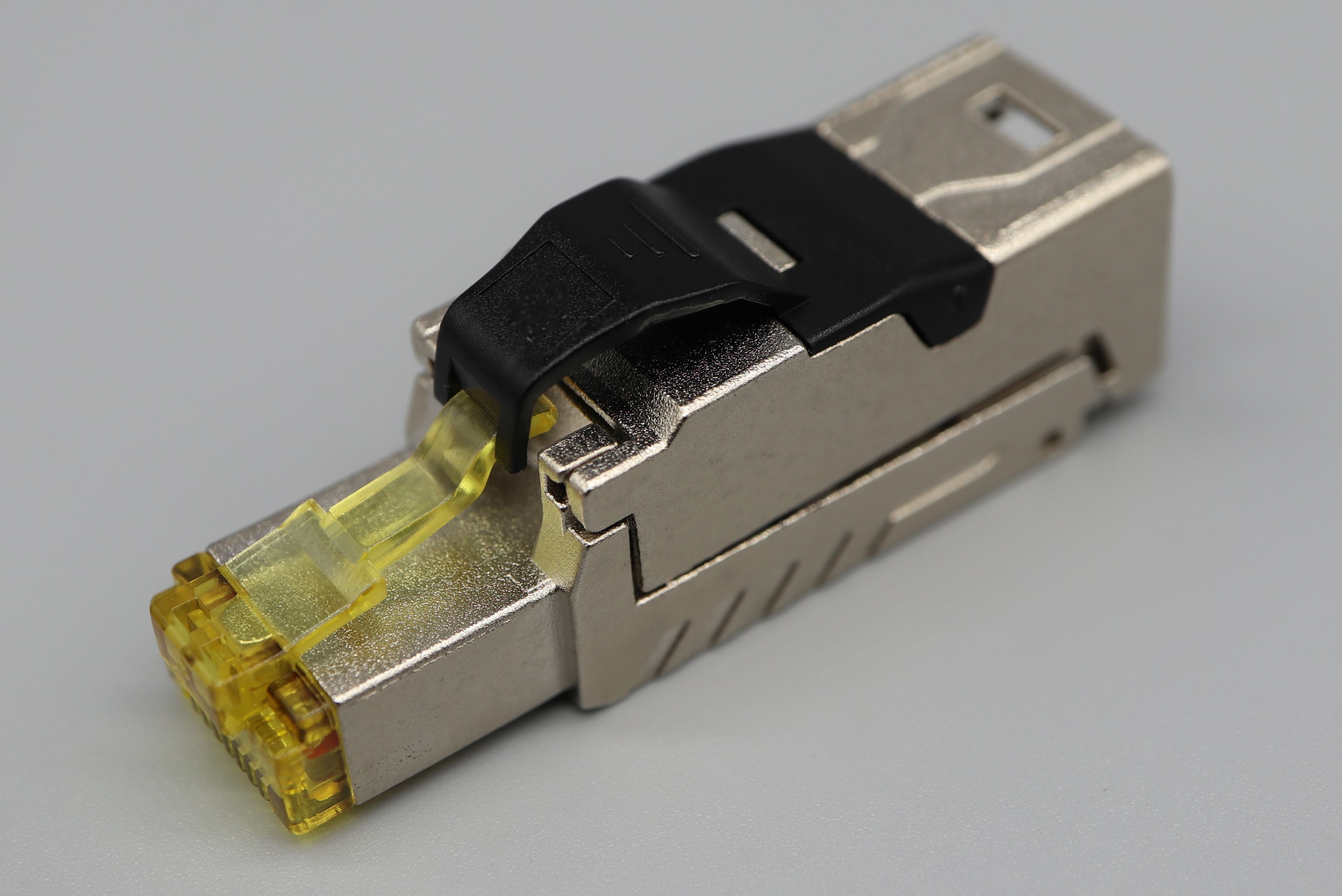

    P8-078-1 RJ45 Cat.8 Full Shielded Field Termination plug - snap-in boot type


    ▲ High Density and extreme performance by PCB compensation design for Hyper-Scale and Edge Data Center

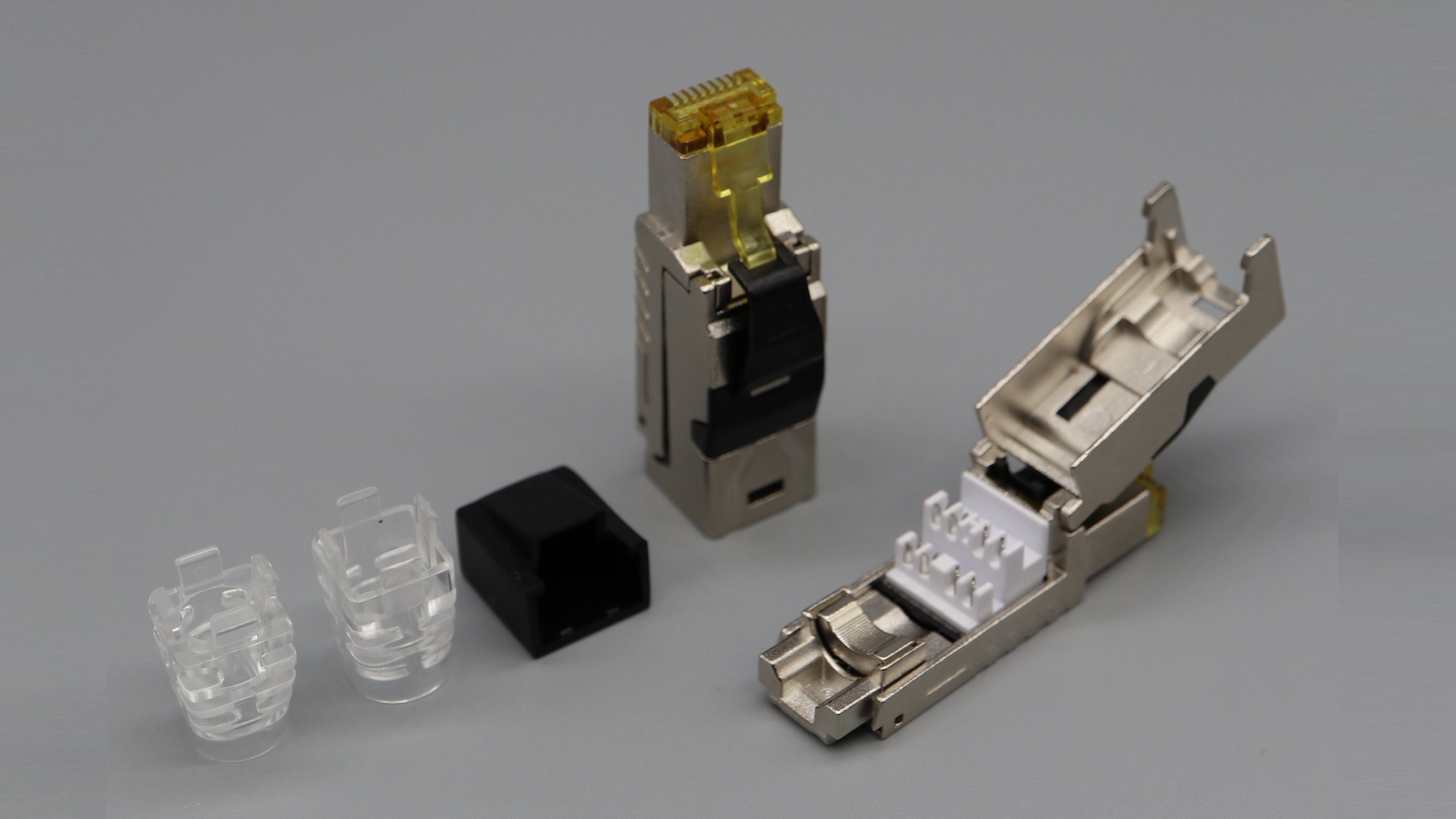

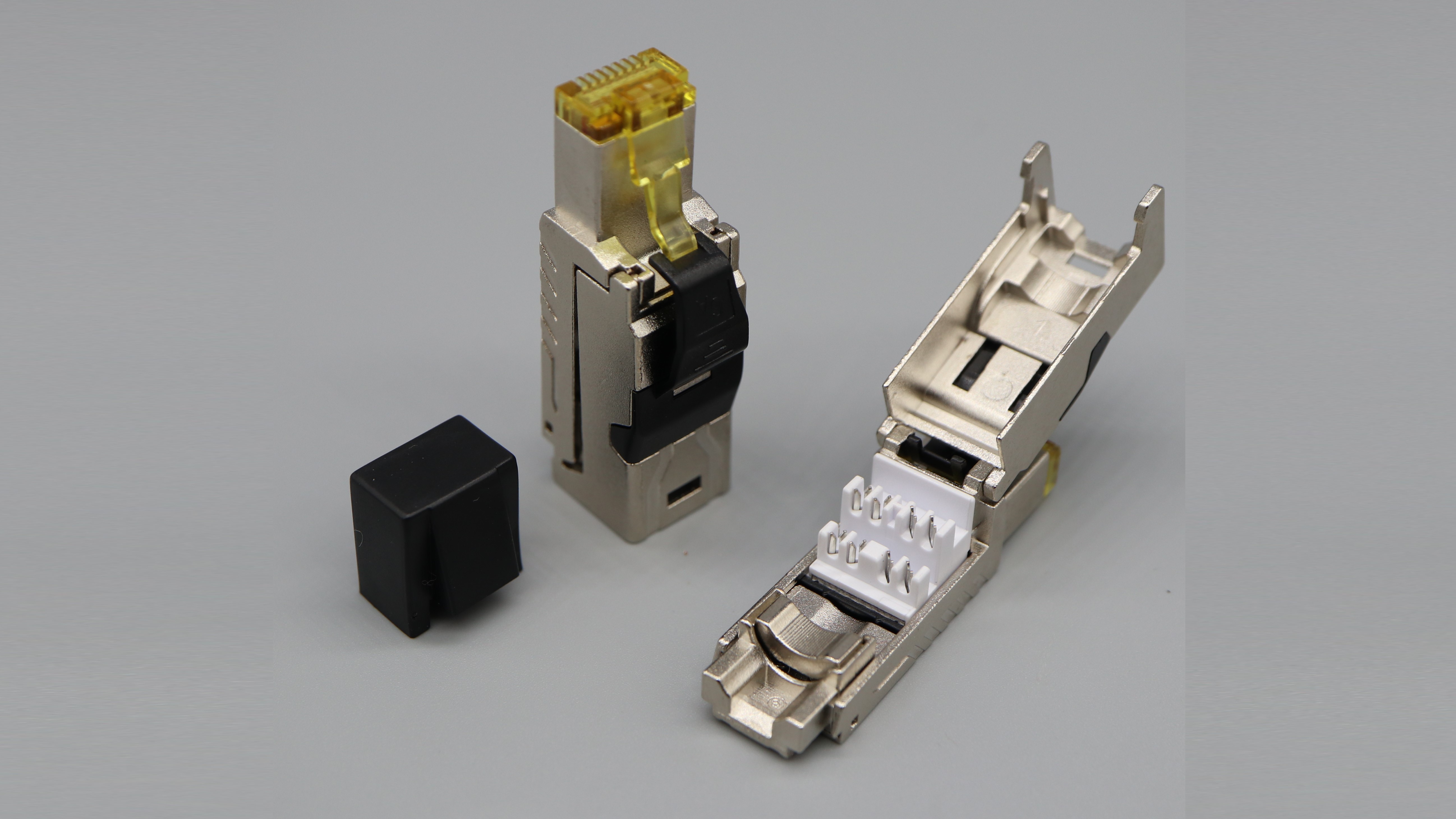

    ▲ Tool-Free structure design support easy and quick in-field termination, T568A & B wiring

    ▲ Power over HDBaseTTM (PoH) applications up to 100 W

    ▲ IP20 performance by the Dust-Cap and Snap-In boot design

    Drawing Guide

Part No. P8-078-1
RJ45 Cat.8 Full Shielded Field Termination plug - snap-in boot type
Maximum conductor W/insulation O.D. Size 22 ~ 24 Awg
Maximum Cable O.D. Size Supported 6.0~8.5mm
Conductor type Solid | Stranded
Packaging Features 1 piece / bag , 50 pieces / white box
Storage temperature -10℃ to 60 ℃
Operation Temperature - 40℃ to 70 ℃
Compliance Meet IEC 60603-7 , ISO/IEC 11801, ANSI/TIA 568 C.2 , TIA-1096 Chapter 4 and 5 , ROHS / REACH Compliant
