    P8-M15-4 RJ45 Modular Plug Cat.6A Shielded 2 Rows with External Ground M-8P8C-F



    Guide

Part No. P8-M15-4

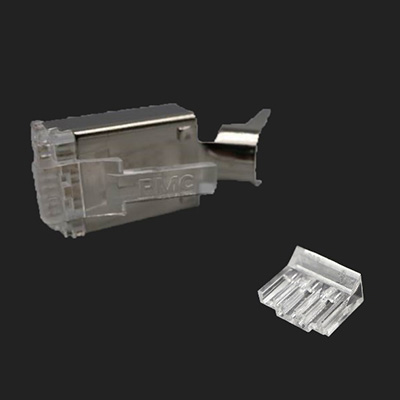

RJ45 Modular Plug Cat.6A Shielded 2 Rows with External Ground M-8P8C-F
Performance Category Cat.6/6A
Description M-8P8C-F Shielded 2 Layers with cable clip, insert
Cable entry hole F
Loading bar Diameter 1.0mm
Wire Insert Diameter

1.0mm
Maximum Cable O.D. Size Supported

For Flat Cable
Maximum conductor W/insulation O.D. Size

1.0mm
Conductor type

Solid | Stranded
Packaging Features

500pcs/bag
Plug Housing Material

UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
Contact Blades Material

Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating
Operation Temperature

- 10℃ ~60 ℃
Storage temperature

- 40℃ ~ 70℃
Compliance

Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
Related Accessories

SR-044
Related Crimping Tools

PM236Q
